CORALFLY Cummins Engines FF5018 Diesel Engine Fuel Filter Fuel Spin - On Filters
Product Details:
Place of Origin: | China |
Brand Name: | CORALFLY |
Certification: | ISO 9001:2015 |
Model Number: | FF5018 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Price: | 4.8-6.8 |
Packaging Details: | Coralfly OR OEM ODM |
Delivery Time: | 15days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
Supply Ability: | 100000PCS/Week |
Detail Information |
|||
Condition: | New | Dimension(l*w*h): | Standard Size |
---|---|---|---|
CORALFLY Certifiion: | ISO9001 | CORALFLY Appliion: | Fuel Filter |
Efficiency: | 99.99% | Warranty: | 1 Year |
Highlight: | FF5018 Diesel Engine Fuel Filter,ISO9001 Diesel Engine Fuel Filter |
Product Description

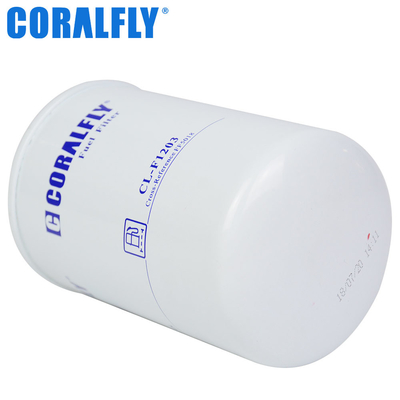

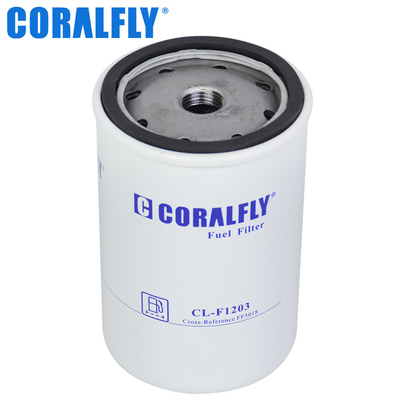

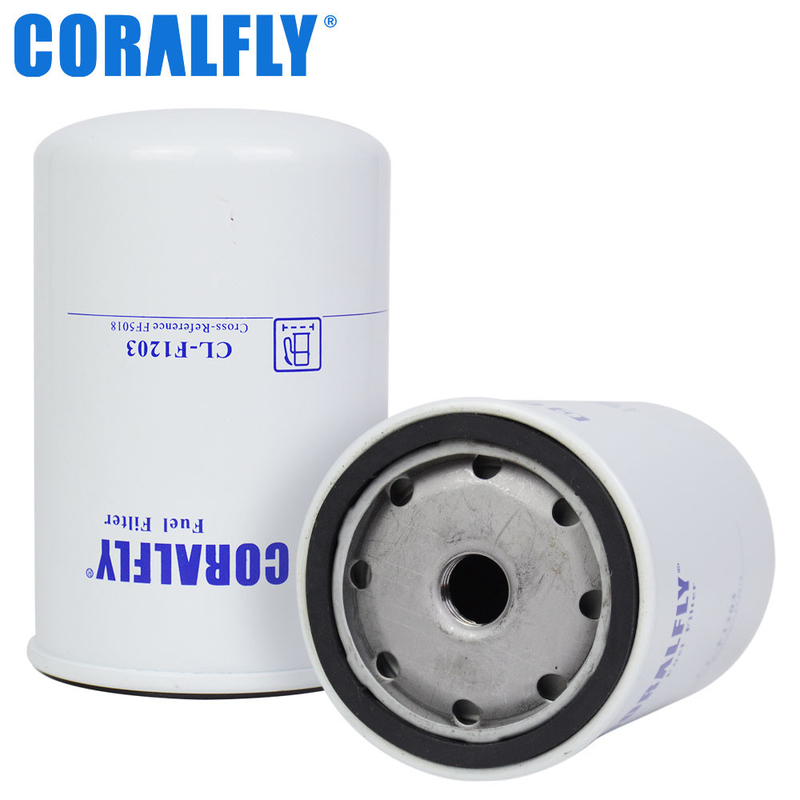

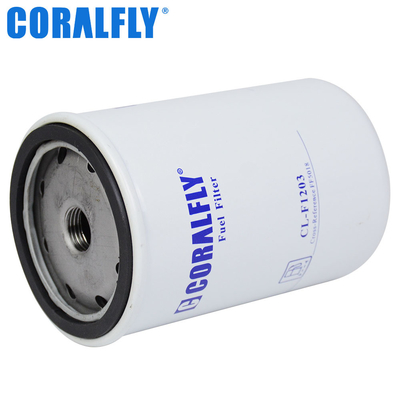

CORALFLY Cummins Engines FF5018 Diesel Engine Fuel Filter Fuel Spin-on filters
Attributes
Stand Pipe | Yes Y/N |
Outer Diameter | 3.04 inch (77.2 mm) |
Thread Size | M16 x 1.5 |
Length | 4.72 inch (120 mm) |
Gasket OD | 2.76 inch (70.2 mm) |
Gasket ID | 2.38 inch (60.5 mm) |
Efficiency 99% | 16 micron |
Efficiency Test Std | SAE J1985 |
Collapse Burst | 100 psi (6.9 bar) |
Style | Spin-On |
Media Type | Cellulose |
Primary Application | CORALFLY 243004 |
Packaged Dimensions
Gross Length | 3.1 IN |
Gross Width | 3.05 IN |
Gross Height | 5.2 IN |
Gross Weight | 0.855 LB |
Gross Volume | 0.0285 FT3 |
OEM ODM & OBM service; Coralfly packaging or according to customer's need packagingService provide:
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
OEM Cross Reference
Manufacturer Name | Manufacturer Part # |
---|---|
ABG | 1160243 |
AC DELCO | TP961 |
AGCO | 1174423 |
AHLMANN | 1160243 |
AKERMAN | 16496 |
Equipment
Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
---|---|---|---|---|---|
AGCO 9630 | - | TRACTOR | 9000 SERIES | - 9630 | - |
AGCO 9650 | - | TRACTOR | 9000 SERIES | - 9650 | - |
AGCO 9670 | - | TRACTOR | 9000 SERIES | - 9670 | - |
AGCO 9690 | - | TRACTOR | 9000 SERIES | - 9690 | - |
AGCO R40 | - | COMBINE | R SERIES | DEUTZ BF6L913 | - |
AGCO R42 | - | COMBINE | R SERIES | - R42 | - |
AGCO R42 | - | COMBINE | R SERIES | DEUTZ BF6L913C | - |
AGCO R50 | - | COMBINE | R SERIES | - R50 | - |
AGCO R52 | - | COMBINE | R SERIES | - R52 | - |
AGCO R52 | - | COMBINE | R SERIES | DEUTZ BF6L913C | - |
AGRALE 1600D | 1985 | TRUCK | 1600 SERIES | MWM D229-3 | - |
AGRALE 7500 | - | TRUCK | - | MWM 4.10 TCA | - |
AGRALE TX1100 | 1982 | TRUCK | TX SERIES | MWM M790 | - |
AGRALE TX1100 | - | TRUCK | - | MWM M790 | - |
AGRALE TX1600 | - | TRUCK | - | MWM D229-3 | - |
AHLMANN A69 | - | LOADER WHEELED | A SERIES | DEUTZ F4L912 | - |
AHLMANN AF10 | - | LOADER WHEELED | AF SERIES | DEUTZ F4L912 | - |
AHLMANN AF16 | - | LOADER WHEELED | AF SERIES | DEUTZ F6L912 | - |
AHLMANN AF9 | - | LOADER WHEELED | AF SERIES | DEUTZ F4L912 | - |
AHLMANN AL8 | - | LOADER WHEELED | AL SERIES | DEUTZ F3L912 | - |
AHLMANN AL8C | - | LOADER WHEELED | AL SERIES | DEUTZ F3L912 | - |
AHLMANN AL8C | - | LOADER WHEELED | AL SERIES | DEUTZ F3L913 | - |
AHLMANN AL8CS | - | LOADER WHEELED | AL SERIES | DEUTZ F3L912 | - |
AHLMANN AL8CS | - | LOADER WHEELED | AL SERIES | DEUTZ F3L913 | - |
AHLMANN AS10 | - | LOADER WHEELED | AS SERIES | DEUTZ BF4L913 | - |
AHLMANN AS12 | - | LOADER WHEELED | AS SERIES | DEUTZ F6L912 | - |
AHLMANN AS12 | - | LOADER WHEELED | AS SERIES | DEUTZ BF6L913 | - |
AHLMANN AS12 | - | LOADER WHEELED | AS SERIES | DEUTZ F6L913 | - |
