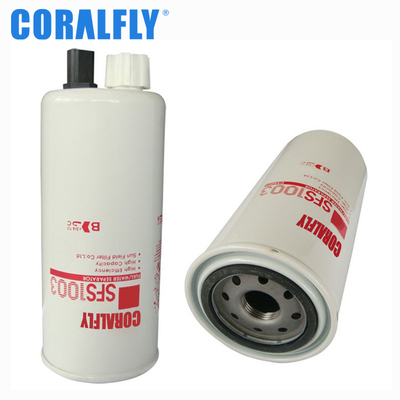

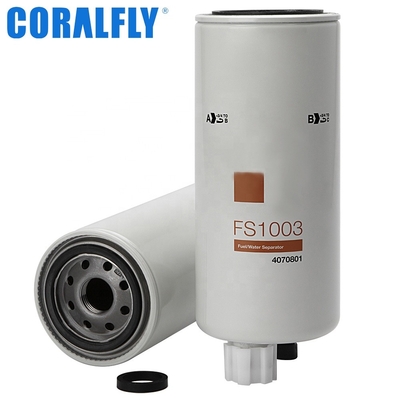

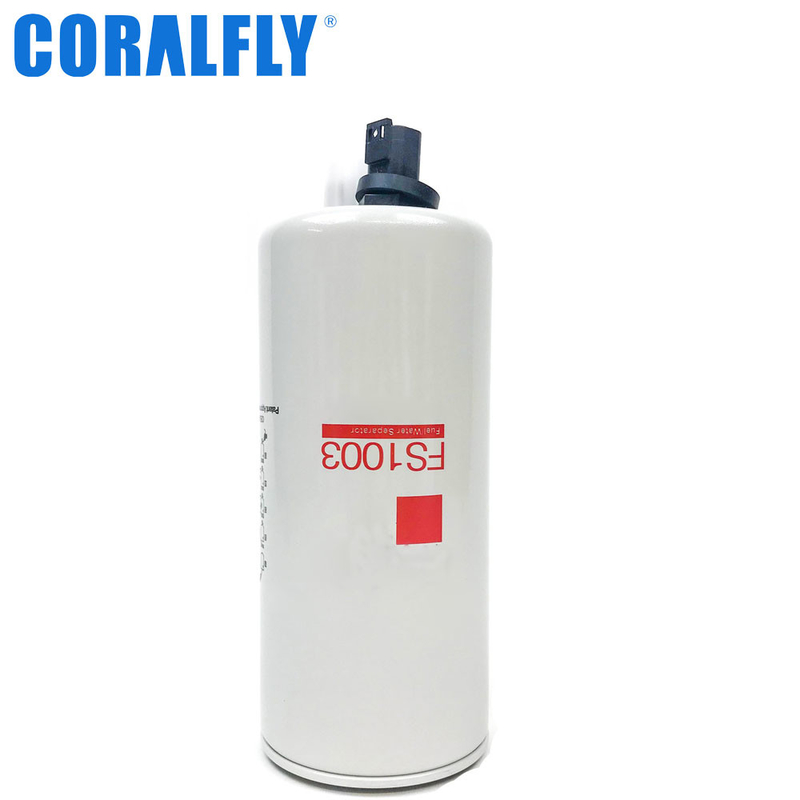

CORALFLY Cummins Engines FS1003 Fuel Water Separator Filter Spin - On With Drain Sensor Port And Reusable Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | CORALFLY |
| Certification: | ISO 9001:2015 |
| Model Number: | FS1003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 4.8-6.8 |
| Packaging Details: | Coralfly OR OEM ODM |
| Delivery Time: | 15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 100000PCS/Week |
|
Detail Information |
|||
| Condition: | New | Dimension(l*w*h): | Standard Size |
|---|---|---|---|
| CORALFLY Certifiion: | ISO9001 | CORALFLY Appliion: | Fuel/Water Separator |
| Efficiency: | 99.99% | Warranty: | 1 Year |
| High Light: | FS1003 Fuel Water Separator Filter,Cummins Engines Fuel Water Separator Filter,CORALFLY Fuel Water Separator Filter |
||
Product Description
CORALFLY Cummins Engines FS1003 Fuel Water Separator Filter Spin-on with Drain Sensor Port and Reusable Sensor
Attributes
| Stand Pipe | Yes Y/N |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 9.4 inch (238.7 mm) |
| Gasket OD | 2.8 inch (71 mm) |
| Gasket ID | 2.4 inch (61 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Composite |
| Primary Application | CUMMINS 3406889 |
| Notes | Not for Marine Applications |
Packaged Dimensions
| Gross Length | 3.7 IN |
| Gross Width | 3.7 IN |
| Gross Height | 9.4 IN |
| Gross Weight | 1.42 LB |
| Gross Volume | 0.0745 FT3 |
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
OEM Cross Reference
| Manufacturer Name | Manufacturer Part # |
|---|---|
| AC DELCO | TP1027 |
| BIG A | 95604 |
| CORALFLY/CORALFLY | 87307432 |
| CHINA LOCAL | VF2818 |
| CUMMINS | 3406889 |
Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BLUEBIRD ALL AMERICAN FE | - | BUS | - | CUMMINS ISC | - |
| BLUEBIRD ALL AMERICAN RE | - | BUS | - | CUMMINS ISB | - |
| BLUEBIRD ALL AMERICAN RE | - | BUS | - | CUMMINS ISC | - |
| BLUEBIRD TC2000 | - | BUS | - | CUMMINS ISB | - |
| BLUEBIRD ULTRA LF | - | BUS | - | CUMMINS ISB | - |
| BLUEBIRD VISION CE | - | BUS | - | CUMMINS ISB | - |
| CORALFLY/CORALFLY 2388 | - | COMBINE | 2300 SERIES | - 2388 | - |
| CORALFLY/CORALFLY 7088 | - | COMBINE | 7000 SERIES | CORALFLY/CORALFLY 9.0L | - |
| CORALFLY/CORALFLY 8010 | - | COMBINE | 8000 SERIES | CORALFLY/CORALFLY 10.3L | - |
| CORALFLY/CORALFLY 9010 | - | COMBINE | 9000 SERIES | CORALFLY/CORALFLY 13.0L | - |
| CUMMINS ISB | - | ENGINE | - | - ISB | - |
| CUMMINS ISB07 | - | ENGINE | - | - ISB07 | - |
| CUMMINS ISB6.7 | - | ENGINE | - | - ISB6.7 | - |
| CUMMINS ISC | - | ENGINE | - | - ISC | - |
| CUMMINS ISL | - | ENGINE | - | - ISL | - |
| CUMMINS ISM | - | ENGINE | - | - ISM | - |
| CUMMINS QSB6.7 | - | ENGINE | - | - QSB6.7 | - |
| CUMMINS QSM11 | - | ENGINE | - | - QSM11 | - |
| DAF FA150 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA180 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA210 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA220 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA250 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA280 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF FA310 | 2014 | TRUCK | LF SERIES | DAF PX5 | - |
| DAF LF45.140 | 2006 | TRUCK | LF45 | PACCAR FR103 | EURO 4, EURO 5 EEV |
| DAF LF45.160 | 2006 | TRUCK | LF45 | PACCAR FR118 | EURO 4, EURO 5 EEV |
| DAF LF45.160 | 2006 | TRUCK | LF45 | PACCAR FR118 | HYBRID EURO 4, EURO 5 EEV |
| DAF LF45.180 | 2006 | TRUCK | LF45 | PACCAR FR136 | EURO 4, EURO 5 EEV |
| DAF LF45.210 | 2009 | TRUCK | LF45 | PACCAR FR152 | EURO 5 EEV |
| DAF LF45.220 | 2006 | TRUCK | LF45 | PACCAR GR165 | EURO 4, EURO 5 |
| DAF LF45.250 | 2006 | TRUCK | LF45 | PACCAR GR184 | EURO 4, EURO 5 |
| DAF LF45.300 | 2009 | TRUCK | LF45 | PACCAR GR225 | EURO 5 EEV |
| DAF LF55.160 | 2006 | TRUCK | LF55 | PACCAR FR118 | EURO 4 |
| DAF LF55.180 | 2006 | TRUCK | LF55 | PACCAR FR136 | EURO 4, EURO 5 EEV |
| DAF LF55.210 | 2009 | TRUCK | LF55 | PACCAR FR152 | EURO 4, EURO 5 EEV |
| DAF LF55.220 | 2006 | TRUCK | LF55 | PACCAR GR165 | EURO 4, EURO 5 EEV |
| DAF LF55.250 | 2006 | TRUCK | LF55 | PACCAR GR184 | EURO 4, EURO 5 EEV |
| DAF LF55.290 | 2006 | TRUCK | LF55 | PACCAR GR210 | EURO 4, EURO 5 EEV |
| DAF LF55.300 | 2009 | TRUCK | LF55 | PACCAR GR220 | EURO 5 EEV |
| DENNIS EAGLE ELITE 2 | - | TRUCK | - | CUMMINS ISLE5 | - |
| DENNIS EAGLE ELITE 2 | - | TRUCK | - | CUMMINS ISC | - |
| DINA LINNER | - | BUS | - | CUMMINS ISB6.7 | - |
| DINA RUNNER | - | BUS | - | CUMMINS ISB6.7 | - |
| DONGFENG KINLAND | - | TRUCK | - | DONGFENG DCI11-340 | - |
| DONGFENG KINLAND | - | TRUCK | - | DONGFENG DCI11-420 | - |
| DONGFENG KINLAND | - | TRUCK | - | DONGFENG DCI11-375 | - |
| FIAT KOBELCO AD30 | - | DUMP TRUCK | - | CUMMINS QSM11 | - |
| FORD F-650 | 2005 | TRUCK | - | CUMMINS ISB5.9 | - |
