Fleetguard Cummins Engines LF4054 Fleetguard Oil Filter Full - Flow Lube Or Hydraulic Spin - On Oil Filter
Product Details:
| Place of Origin: | China |
| Brand Name: | CORALFLY |
| Certification: | ISO 9001:2015 |
| Model Number: | LF4054 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 4.8-6.8 |
| Packaging Details: | Coralfly OR OEM ODM |
| Delivery Time: | 15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 100000PCS/Week |
|
Detail Information |
|||
| Condition: | New | Dimension(l*w*h): | Standard Size |
|---|---|---|---|
| CORALFLY Certifiion: | ISO9001 | CORALFLY Appliion: | Oil Filter |
| Efficiency: | 99.99% | Warranty: | 1 Year |
| High Light: | LF4054 Fleetguard Oil Filter,Full Flow Lube Fleetguard Oil Filter,Hydraulic Fleetguard Oil Filter |
||
Product Description

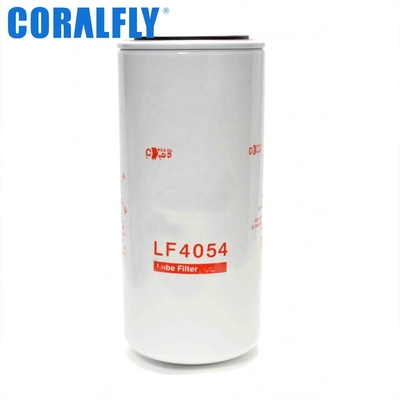

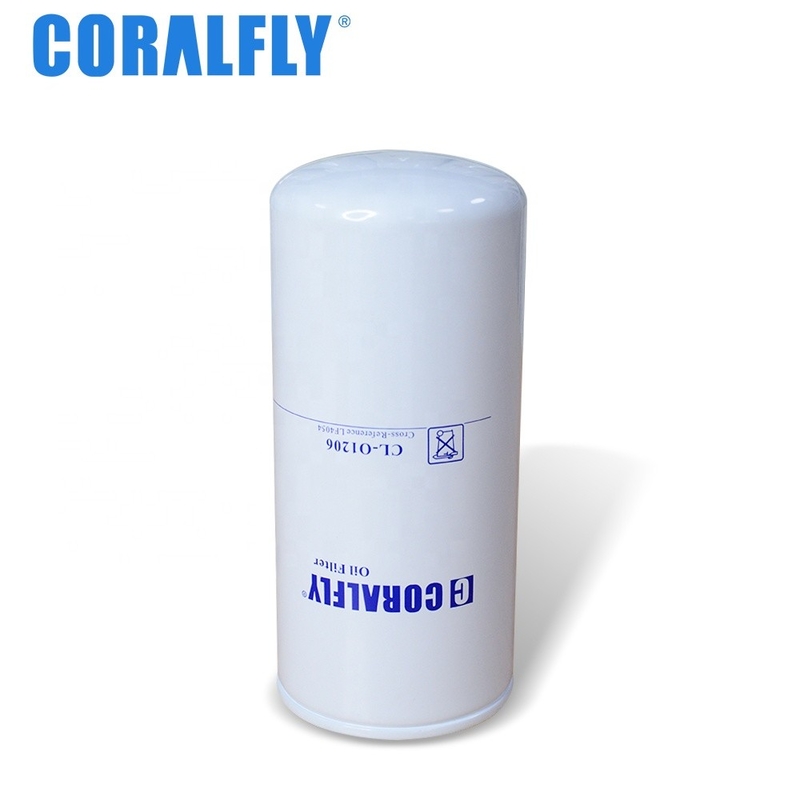

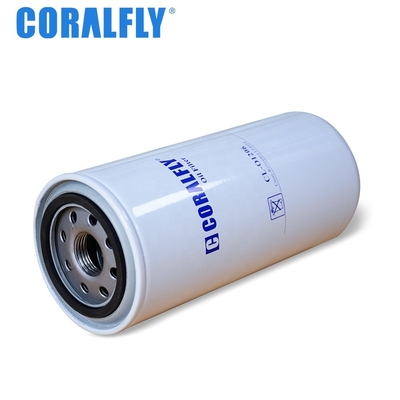

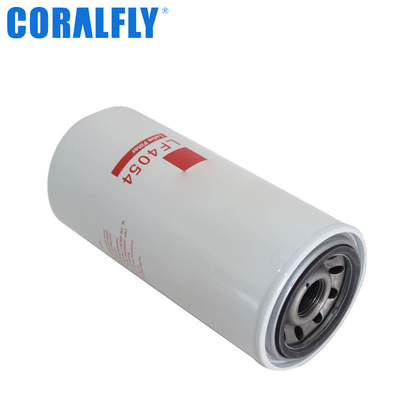

Fleetguard Cummins Engines LF4054 Fleetguard Oil Filter Full-Flow Lube or Hydraulic Spin-on Oil Filter
Attributes
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-12 UN |
| Length | 7.87 inch (200 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.40 inch (61 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | ISO 4548-12 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 29 psi (2 bar) |
| Bypass Valve Setting HR | 36 psi (2.5 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Packaged Dimensions
| Gross Length | 0.3 FT |
| Gross Width | 0.3 FT |
| Gross Height | 0.66 FT |
| Gross Weight | 1.28 LB |
| Gross Volume | 0.0609 FT3 |
OEM ODM & OBM service; Coralfly packaging or according to customer's need packagingService provide:
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
OEM Cross Reference
| Manufacturer Name | Manufacturer Part # |
|---|---|
| ABG | 1160025 |
| AC DELCO | PF2154 |
| AGCO | 1174421 |
| AHLMANN | 1160025 |
| ALLIS-CHALMERS | 61671160 |
Equipment
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 9670 | - | TRACTOR | 9000 SERIES | - 9670 | - |
| AGCO 9690 | - | TRACTOR | 9000 SERIES | - 9690 | - |
| AGCO R60 | - | COMBINE | R SERIES | DEUTZ F8L513 | - |
| AGCO R60 | - | COMBINE | R SERIES | - R60 | - |
| AGCO R62 | - | COMBINE | R SERIES | DEUTZ BF8L513 | - |
| AGCO R72 | - | COMBINE | R SERIES | DEUTZ BF8L513 | - |
| AGRALE 7000 | 1996 | TRUCK | 7000 SERIES | MWM 4.10 T | - |
| AGRALE 7500 | - | TRUCK | - | MWM 4.10 TCA | - |
| AGRALE 8500 | - | TRUCK | - | MWM 4.10 TCA | - |
| AHLMANN A110 | - | LOADER WHEELED | A SERIES | DEUTZ F6L514 | - |
| AHLMANN AF16 | - | LOADER WHEELED | AF SERIES | DEUTZ F6L912 | - |
| AHLMANN AS10 | - | LOADER WHEELED | AS SERIES | DEUTZ BF4L913 | - |
| AHLMANN AS12 | - | LOADER WHEELED | AS SERIES | DEUTZ F6L912 | - |
| AHLMANN AS12 | - | LOADER WHEELED | AS SERIES | DEUTZ F6L913 | - |
| AHLMANN AS12D | - | LOADER WHEELED | AS SERIES | DEUTZ F6L912 | - |
| AHLMANN AS12D | - | LOADER WHEELED | AS SERIES | DEUTZ F6L913 | - |
| AHLMANN AS12E | - | LOADER WHEELED | AS SERIES | DEUTZ F6L912 | - |
| AHLMANN AS12E | - | LOADER WHEELED | AS SERIES | DEUTZ F6L913 | - |
| AHLMANN AS210 | - | LOADER WHEELED | AS SERIES | DEUTZ BF6M2012C | - |
| AHLMANN AZ150E | - | LOADER WHEELED | AZ SERIES | DEUTZ TCD2012L4 | - |
| ALLIS-CHALMERS 7110 | - | TRACTOR | - | - 7110 | - |
| ALLIS-CHALMERS 9170 | - | TRACTOR | - | - 9170 | - |
| ALLIS-CHALMERS R60 | - | COMBINE | - | - R60 | - |
| ALLIS-CHALMERS R70 | - | COMBINE | - | - R70 | - |
| AMERICAN AUGERS P300 | - | DRILLING EQUIPMENT | - | CATERPILLAR C9 | - |
